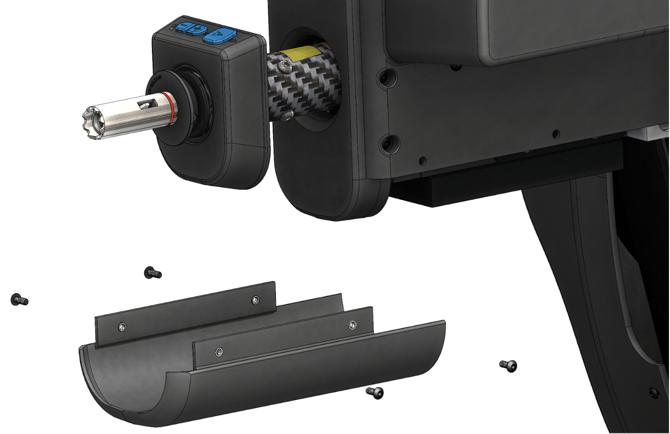

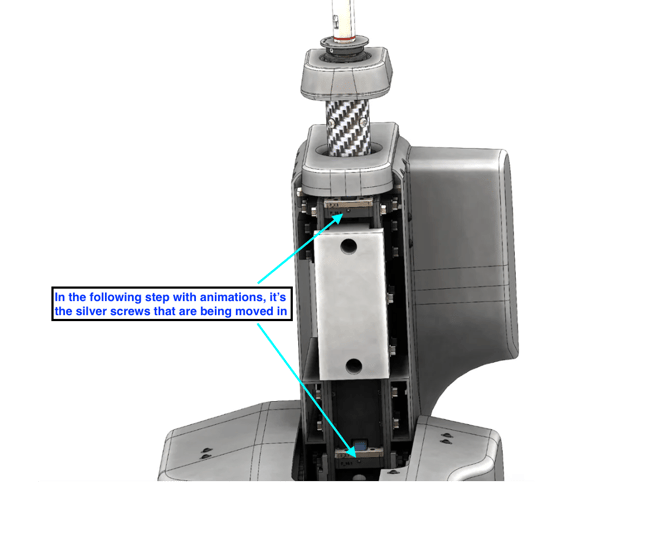

--- title: Roller Set Screw Adjustment description: "1. Use a 1/8" Hex/Allen Key to remove the 4X screws holding the Bottom Cover. Caution: Go slow when removing to ensure the threaded inserts do not get damaged. 2.  There is one set screw located on t" --- [Skip to content](https://troubleshooting.proteusmotion.com/knowledge/adjust-arm-tensioning-screws#main-content) English Show submenu for translations [Submit a Support Ticket](https://troubleshooting.proteusmotion.com/knowledge/kb-tickets/new?hsLang=en) ![horizontal - blue-1.png\]](https://troubleshooting.proteusmotion.com/hs-fs/hubfs/Logos/horizontal%20-%20blue-1.png?height=40&name=horizontal%20-%20blue-1.png) Open main navigation Close main navigation - English Show submenu for translations - [Submit a Support Ticket](https://troubleshooting.proteusmotion.com/knowledge/kb-tickets/new) - Go to proteusmotion.com Go to proteusmotion.com Proteus Knowledge Base - There are no suggestions because the search field is empty. 1. [Help Resources](https://troubleshooting.proteusmotion.com/knowledge?hsLang=en) 2. [Hardware Issues](https://troubleshooting.proteusmotion.com/knowledge/hardware-issues?hsLang=en) 3. [Installation & Self Service](https://troubleshooting.proteusmotion.com/knowledge/hardware-issues?hsLang=en#installation-self-service) # Roller Set Screw Adjustment 1\. Use a **1/8"** Hex/Allen Key to remove the 4X screws holding the Bottom Cover. Caution: Go slow when removing to ensure the threaded inserts do not get damaged. ![Screenshot 2023-10-18 at 11.39.48](https://troubleshooting.proteusmotion.com/hs-fs/hubfs/Screenshot%202023-10-18%20at%2011.39.48.png?width=670&height=434&name=Screenshot%202023-10-18%20at%2011.39.48.png) --- 2.  There is **one** set screw located on the bottom of each roller plate in the linear stage. The front plate sits just behind the enclosure piece. The rear plate sits about a foot behind that, closer to the pivot point.                                         ![roller set screws](https://troubleshooting.proteusmotion.com/hs-fs/hubfs/roller%20set%20screws.png?width=670&height=534&name=roller%20set%20screws.png) --- 3\. Use a 3/32" Hex/Allen Key to tighten/loosen the bottom set screws gradually until proper tension is achieved. Both plates should be adjusted such that the bottom wheel is making contact and rotating with arm use. Note: A properly set Linear should require roughly 5-6lbs of force to move it in/out when the machine is off.                               ![Front Plate Set Screw](https://troubleshooting.proteusmotion.com/hs-fs/hubfs/Front%20Plate%20Set%20Screw.gif?width=650&height=367&name=Front%20Plate%20Set%20Screw.gif)                                    ![Rear Plate Set Screw](https://troubleshooting.proteusmotion.com/hs-fs/hubfs/Rear%20Plate%20Set%20Screw.gif?width=548&height=309&name=Rear%20Plate%20Set%20Screw.gif)                 - [Getting Started](https://troubleshooting.proteusmotion.com/knowledge/getting-started?hsLang=en) - [Software How To's](https://troubleshooting.proteusmotion.com/knowledge/software-how-tos?hsLang=en#main-content) - [Performance Testing](https://troubleshooting.proteusmotion.com/knowledge/software-how-tos?hsLang=en#performance-testing) - [Account Management](https://troubleshooting.proteusmotion.com/knowledge/software-how-tos?hsLang=en#account-management) - [Test Results](https://troubleshooting.proteusmotion.com/knowledge/software-how-tos?hsLang=en#test-results) - [Software Feature Guides](https://troubleshooting.proteusmotion.com/knowledge/software-feature-guides?hsLang=en#main-content) - [Performance Testing](https://troubleshooting.proteusmotion.com/knowledge/software-feature-guides?hsLang=en#performance-testing) - [Test Results](https://troubleshooting.proteusmotion.com/knowledge/software-feature-guides?hsLang=en#test-results) - [Freestyle](https://troubleshooting.proteusmotion.com/knowledge/software-feature-guides?hsLang=en#freestyle) - [Hardware Issues](https://troubleshooting.proteusmotion.com/knowledge/hardware-issues?hsLang=en#main-content) - [Position Issues](https://troubleshooting.proteusmotion.com/knowledge/hardware-issues?hsLang=en#position-issues) - [Resistance Issues](https://troubleshooting.proteusmotion.com/knowledge/hardware-issues?hsLang=en#resistance-issues) - [Installation & Self Service](https://troubleshooting.proteusmotion.com/knowledge/hardware-issues?hsLang=en#installation-self-service) - [FAQ](https://troubleshooting.proteusmotion.com/knowledge/hardware-issues?hsLang=en#faq) - [Bluetooth & Attachments](https://troubleshooting.proteusmotion.com/knowledge/bluetooth-attachments?hsLang=en#main-content) - [Bluetooth](https://troubleshooting.proteusmotion.com/knowledge/bluetooth-attachments?hsLang=en#bluetooth) - [Attachments](https://troubleshooting.proteusmotion.com/knowledge/bluetooth-attachments?hsLang=en#attachments) - [Tablet & Internet Connection](https://troubleshooting.proteusmotion.com/knowledge/tablet-internet-connection?hsLang=en) - [Didn't Find What You're Looking For?](https://troubleshooting.proteusmotion.com/knowledge/didnt-find-what-youre-looking-for?hsLang=en) # Proteus Motion, Inc proteusmotion.com Help Center Copyright © 2026, Proteus Motion, Inc
