      Adjusting your monitor angle

      Horizontal swivel is controlled with the 2X screws, accessible from behind and shown here.

      image-2

      image (1)-4

       Use a 5/32" hex key to loosen these screws 1 full turn allows the monitor to swivel from this top mount.




      Caution: The bottom  floor mounted end must stay stationary to avoid damage to internal cables.





      image (3)-1

      Adjust the monitor angle slightly and ensure it is clear of contact with the machine when in motion. When done, tighten the 2X loosened screws to lock the monitor in place.

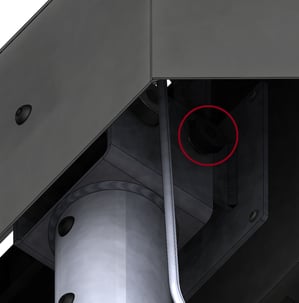

      Vertical tilt is controlled by the thumbscrew located above the  and may requires the cover be removed first. Loosen it  half a turn with a 3/16" hex key.

      image (3)-2  image (2)-3

      Note: The monitor does not adjust height vertically, its position is fixed.



      image (4)-1

      Adjust the monitor angle slightly and ensure it is clear of contact with the machine when in motion. When done, tighten the thumbscrew to lock the monitor in place.
